BCA310-MS C.O.T.S. Battery Charger

BCA310-MS C.O.T.S. Battery Charger

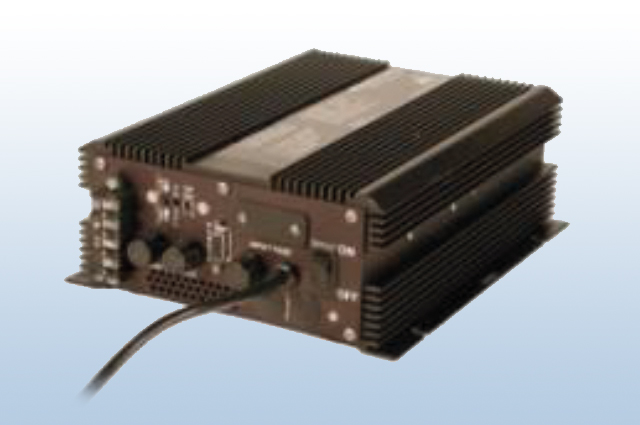

The BCA310-MS Battery Charger provides up to 300 watts to charge a 12, 24, 28, or 48-volt battery system (1 or 2 banks) from a 110 or 220VAC source. The batteries must share a common ground.

This all-new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and an equalize charging cycle. Safety features include both charger and battery over-temperature shutdown, current limiting, short circuit protection with automatic recovery, input undervoltage shutdown, reverse battery hook-up protection, a dry contact alarm relay output and output overvoltage crowbar.

Optional features include a Digital Volt/Ammeter, 3-Bank Charging, a Remote Control Panel, and/or a second Battery Temperature Sensor. We are confident that you will get many years of reliable service from this AC Battery Charger.

Benefits

  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation
  • Fast & Accurate Charging
  • Adjustable output voltage for charging standard or deep cycle lead-acid, VRLA or Gel cell type battery
  • Extremely rugged and well suited for marine and other demanding environments
  • High tolerance for shock and vibration
  • Ultra-quiet, low EMI operation
  • Can be left permanently connected
  • Can function as a power supply
  • User selectable 2 or 3 stage charging profile
  • Field switchable between 110VAC and 220VAC
  • Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
  • Over-temperature shutdown
  • Temperature compensated charging
  • Short circuit protection
  • Output over-voltage crowbar
  • Inrush Current Limiting with solid state bypass
  • Dry contact output fail relay
  • 2 year parts and labour warranty

Most of the products manufactured by Analytic Systems can be adapted for military use (Commercial Off The Shelf).

We provide four different levels of ruggedization; most often, a product in military use will use the extra-wide temperature range components to allow operation to +55 degrees Celsius.

The printed circuit boards are also protected against condensation and are enhanced with vibration protection that are designed to meet or exceed MIL-STD810F, Method 514-3 and Cat-1 Proc 1. C.O.T.S.

All C.O.T.S. products are manufactured in accordance with IPC-A-610.

Datasheet

BCA310-MS C.O.T.S. Battery Charger
