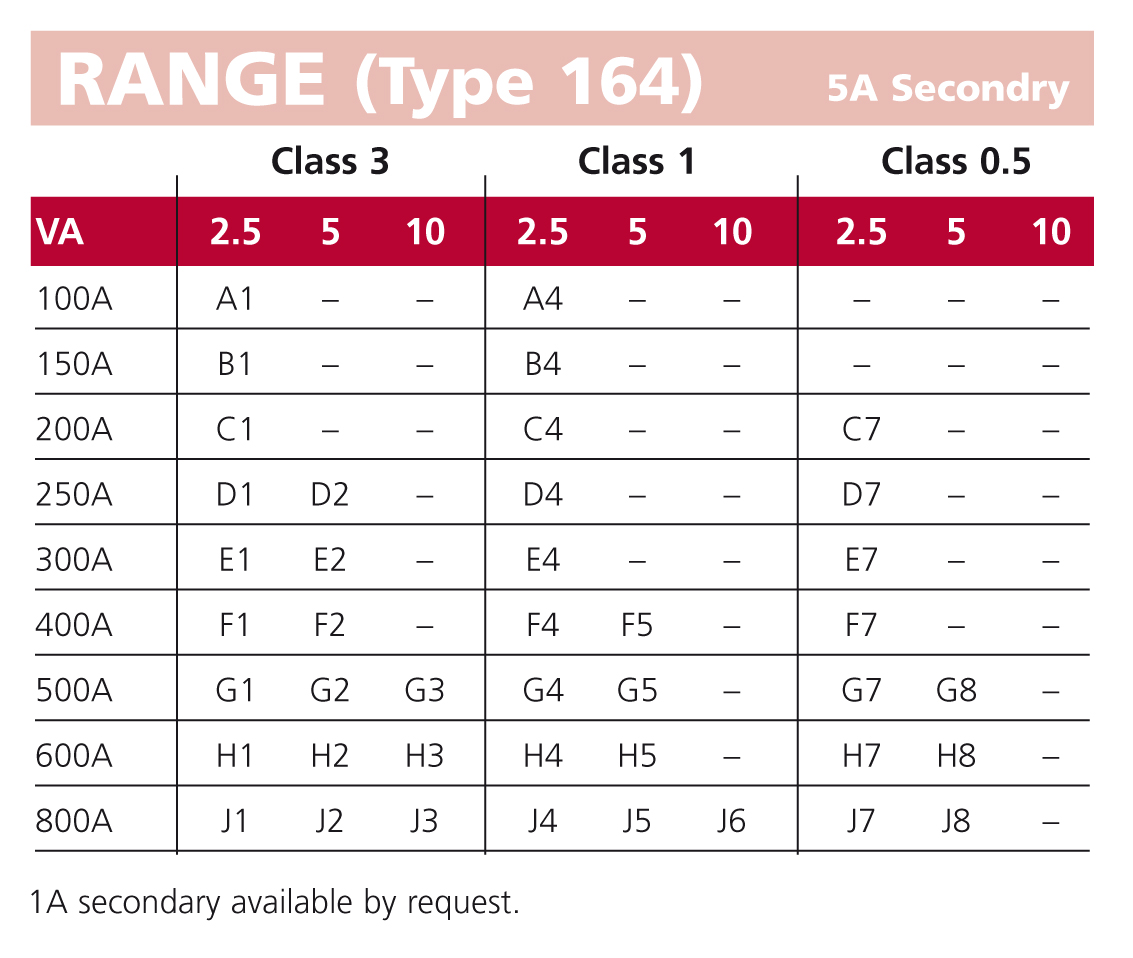

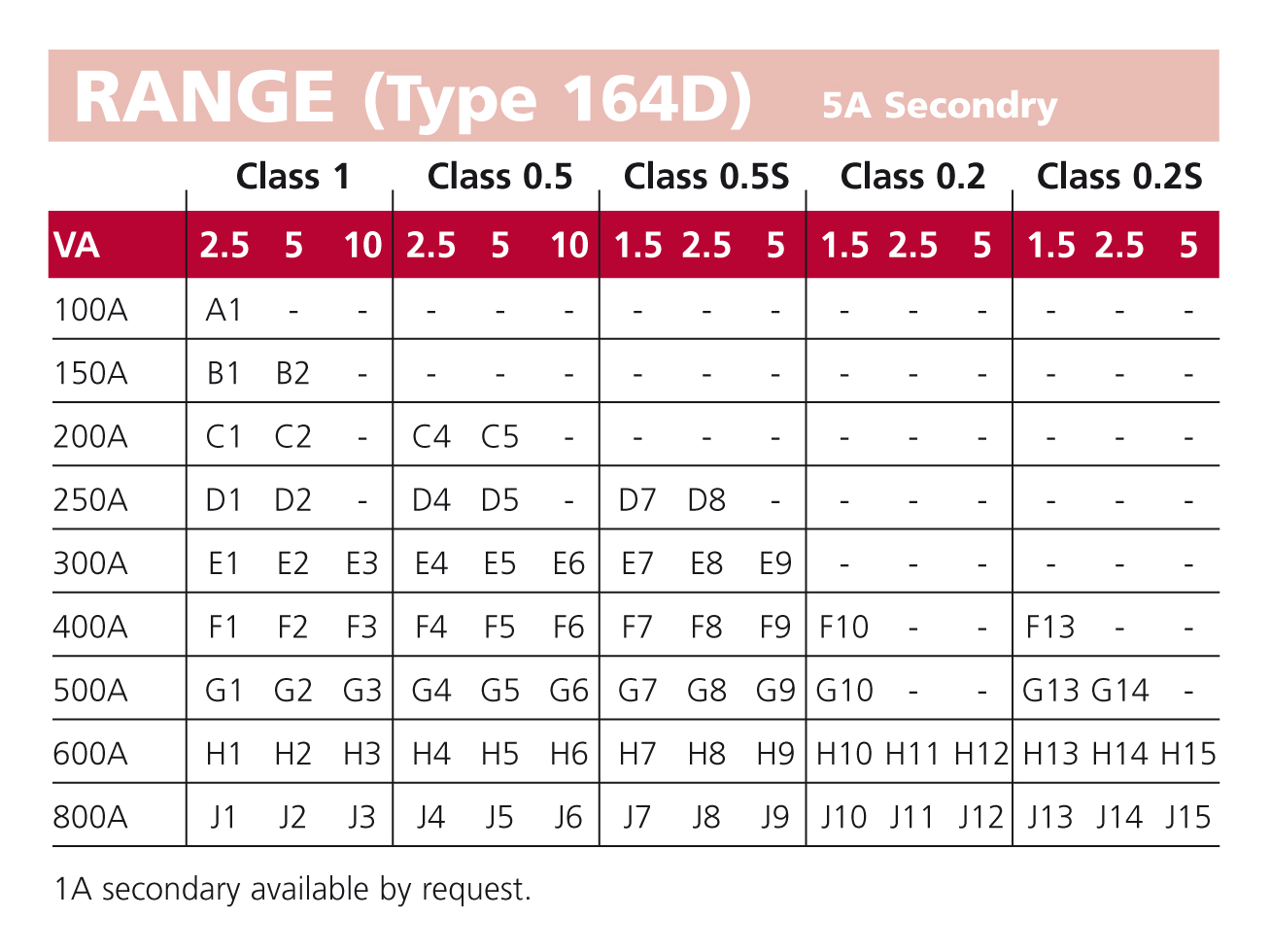

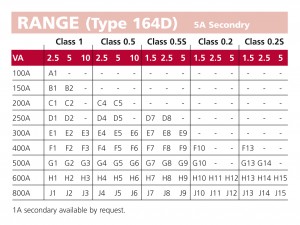

Series 164 30/40mm Busbars

Description
A range of compact moulded case current transformers suitable for primary currents from 100A to 800A with built in terminal covers.

Application

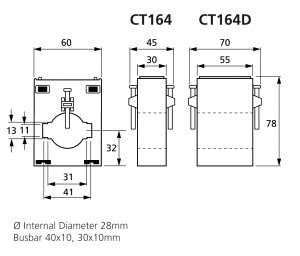

For transforming various primary currents into 1A or 5A secondary using 40x10mm busbars, 30x10mm busbars or 28mm diameter cables.

Conforms to IEC185, BS 7626, BSEN 60044-1, IEC 60044-1, BSEN 61869-2 and IEC 61892-2
Rated system voltage 0.72/3kV
Ambient temperature range -30°C to 40°C
Continuous current, 1.2 x rated current.
