Series 18 50/60mm Busbars

Series 18 50/60mm Busbars

Description
A range of compact low cost moulded case current transformers suitable for primary currents from 400A to 1600A with built in sealable terminal covers.


Application
For transforming various primary currents into 5A or 1A standard secondary using up to 60x15mm or 50x30mm busbars or cables up to 45mm diameter.

  • A range of compact low cost moulded case current transformers suitable for primary currents from 400A to 1600A with built in sealable terminal covers
  • Built in sealable terminal covers
  • Mounting feet supplied
  • Narrow width - 85mm
  • Wide range of primary current.
  • Conforms to IEC 185, BS 7626, BSEN 60044-1 and IEC 60044-1
  • Rated system voltage 0.72 / 3kV
  • Continuous Current 1.2 x rated current
  • Ambient temperature range -30ºC to 85ºC

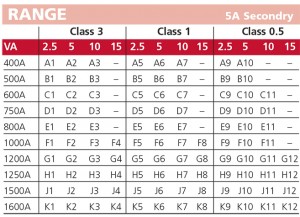

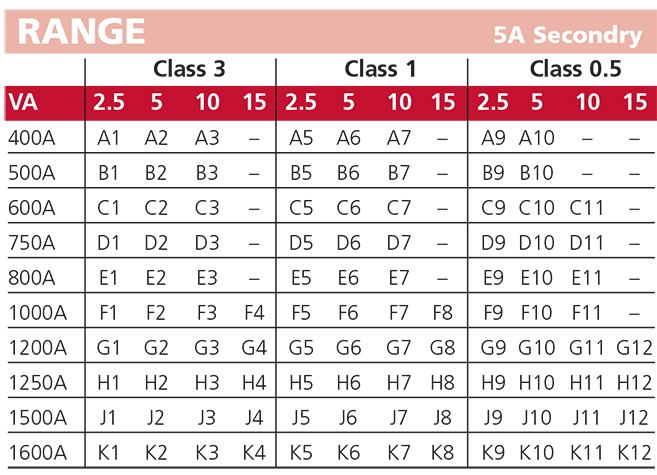

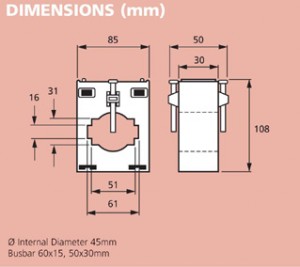

18seriesdims 18_series-table

Download the Series 18 data sheet
