Series 19 60/30mm Busbars

Series 19 60/30mm Busbars

Description

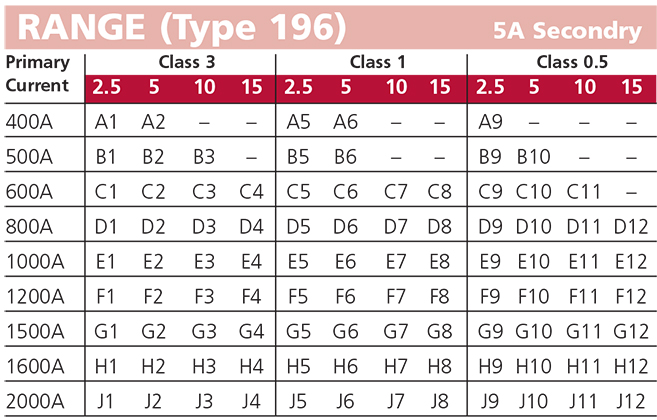

A range of compact low cost moulded case current transformers suitable for primary currents from 400A to 2000A with built in sealable terminal covers.


Application
For transforming various primary currents into 5A or 1A standard secondary using upto 60x30mm busbars or cables upto 45mm diameter.

  • Built in sealable terminal covers
  • Mounting Feet supplied
  • Narrow width - 90mm
  • Wide range of primary current.
  • Conforms to IEC 185, BS 7626, BSEN 60044-1 and IEC 60044-1
  • Rated system voltage 0.72 / 3kV
  • Ambient temperature range -30ºC to 85ºC
  • Continuous current 1.2 x rated current.

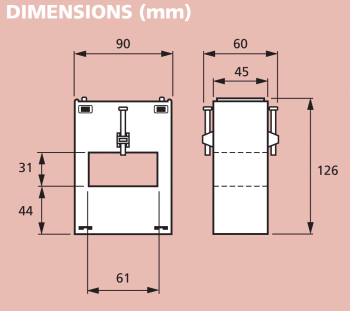

series 19 dims Layout 1

Download the Series 19 data sheet
