Battery Modules - 12V

These Battery Modules are designed to work with the Adel CB battery charger and CBI All in One DC UPS range of products. This series has been developed to complete the range of ADEL SYSTEM back up power products and includes items which can contribute to the quality of overall performance, relibility and safety of the uninterruptible power supply installation or battery bank.

Battery Modules are available in the following sizes: 1.2 – 3 – 7.2 and 12Ah. They have been developed to enable battery applications to be carried out in safety. For this reason, they are fitted with fuse and terminal vlock and they are available with DIN rail or base mounting aluminium carriers.

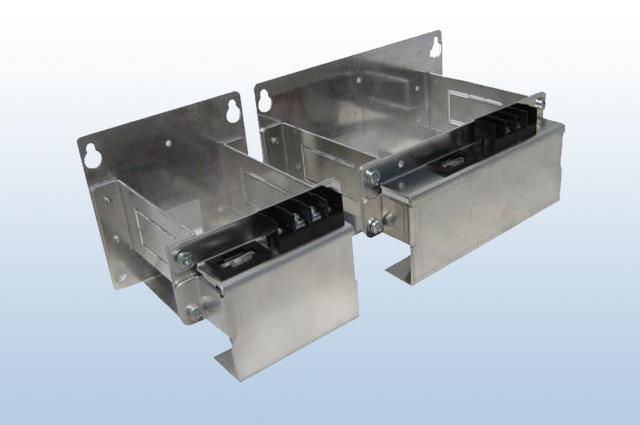

Battery Holders

Battery Module for DC-UPS "All In One" range for One or Two batteries.Suitable to support maintenance-free lead-acid batteries standard size, with serial fuse. Simple connection with screws. Size: 1.2 Ah, 3 Ah, 7.2 Ah and 12 Ah.

Main Features: For Maintenance -free lead-acid batteries, Output: 12; 24 Vdc, Protection: Fusion, Connection with screws, Short circuit Protection IP20, Wall Mount with screws / Din Rail

Catalogues for Battery Modules
Catalogues for Battery Holders

Enclosure with Batteries 12Vdc

PART NO.	INPUT	OUTPUT	DATA SHEET
BATT123	Battery 3.2Ah	12 Vdc
BATT127	Battery 7.2Ah	12 Vdc
Battery Holder without Batteries 12 Vdc

BATTHOLDER123	3.2Ah	12 Vdc
BATTHOLDER127	7.2Ah	12 Vdc
BATTHOLDER1212	12Ah	12 Vdc
