PWS610 Series Heavy Duty AC/DC Power Supplies

BENEFITS

  • Ultra-quiet
  • Power sensitive electronics without interference
  • Rugged and reliable to ensure years of safe and trouble free operation

The PWS610 Series of power supplies provides 12, 24 or 48 Volts DC at 600 Watts of continuous power from a 110 or 220 Volt AC source.

Analytic Systems' power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.

The newly updated single-board PWS610 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS610 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.

Features

  • Adjustable output voltage
  • Extremely rugged and well suited for marine and other demanding environments
  • Ultra-quiet low EMI operation
  • Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
  • Over-temperature shutdown
  • Current limiting
  • Short circuit protection
  • Output over-voltage crowbar
  • Dry contact output fail relay
  • Remote control option
  • Digital Volt/Ammeter option
  • Custom output voltages available
  • 19” Rackmount Available
  • 3 year parts and labour warranty
  • Parallel output diodes available

Applications

  • Marine & other rugged environments
  • Mobile Offices (TV and Radio Vans)
  • Automotive / RV
  • Electric Utilities and Substations
  • Base Station Power(Radio & Telecommunications)
  • Industrial Controls(OEM Applications)
  • Field Work / Construction Sites
  • Solar Power Systems
  • Emergency Power Backup (UPS)
  • Security Systems
  • Product Burn-in Facilities
Electrical [Input]
Nominal Vac (ip) 110 220
Actual (Vac) 105-125 210-250
Input Amps (Max) 4.3 2.1
Input Circuit Breaker 7A 4A
Input Frequency 45-65 Hz
Noise on Input < 25mV
Electrical [Output]
Output Nominal (op) 12 24 48
Output Volts (DC) 13.6 ± 0.05 27.2 ± 0.05 54.4 ± 0.05
Output Amps 20cont./25peak 10cont./13peak 5.0cont./6.5peak
Absorption to Float(15%) 3.0Amps 1.5Amps 0.75Amps
Output Adjustment(Vdc) ± 1.0V
Output Crowbar 16.0 ± 0.5V 32.0 ± 1.0V 64.0 ± 1.0V
Output Ripple & Noise < 25 mV
Transient Response < 1V for 50% Surge
Regulation
(Line & Load)
< +/- 0.5%
Duty Cycle Peak 20% for 10min max
Continuous 100% for 24 hours per day
Efficiency > 80% @ Maximum Output
Environmental Specification
Operating Temp. Range -25° to +40°C @ maximum output
Derate Linearly 2.5% per °C from 40°C
(Optional -40°C extra wide temp. operation avail.)
Humidity 0 - 95% Relative Humidity
(non-condensing) with optional conformal coating
Audible Noise NONE - 0db @ 3 ft
Typical Service Life >10 years (87,600 hours)
Isolation Input-Case & input-output 1500VDC
Output - Case 500VDC(1500VDC @ 48V O/P)

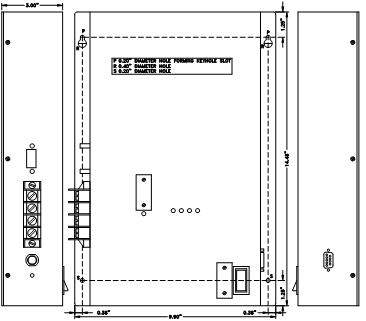

Mechanical Specification
Length 9.6 in/ 24.4 cm
Width 8.2 in/ 20.8 cm
Height 3.5 in/ 6.4 cm
Clearance 1 inch (2.5 cm) all around
Material Marine Grade Aluminium
Finish Black Anodize / Powder Epoxy Coat
Fastenings All 18-8 Stainless Steel
Weight 7.5 lb / 3.4 kg
Connections Four contact output terminals
Warranty 3 years
Safety Designed to meet CSA 22.2.107.1 & UL458
