IPS300M Series

BENEFITS

Ultra-quiet
Power sensitive electronics without interference
Rugged and reliable to ensure years of safe and trouble free operation

Computers are moving onto the battlefield at an ever increasing rate as more and more specialty software packages become available. However there is a major problem. Computers require clean, pure AC power to work reliably. If you power one from the same Military Genset that runs your heavy loads, you could damage it from surges and spikes generated by switching those loads.

If you power it from the same Inverter that runs a microwave and other electrical devices, similar problems occur, plus voltage dropouts from excessive loads on the inverter add to the problem. Also, most inverters produce 'Quasi-Sine Wave' AC, which often doesn't run computers very well. Complaints of noisy displays, cursors that move by themselves and more abound.

The IPS Series of 'Pure Sine Wave' Inverters are designed specifically for running computers and other electronics in rugged mobile and other off-grid locations.

One standard AC receptacles or a variety of customized MIL-SPEC Connectors provide for easy connection. Versions are available to operate from 12V, 24V, 28V, or 32 volt battery systems. The IPS300MS series of inverters carry a full two-year warranty.

Features

Pure Sine Wave - 120 VAC / 60 Hz fully regulated output, exactly the same as household AC

Ultra-quiet, low EMI design

Extra heavy input filtering to eliminate interference with other equipment sharing the same batteries

Crystal controlled for precise frequency ( 0.01 Hz)

State-of-the-art MosFet technology and unique "Soft-Start" circuitry for reliable operation

Short Circuit Protection

Current Limiting

Overload Protection

Illuminated ON-OFF switch for positive indication of proper operation

Built to the Q-Base Quality System Standard

Over-temperature protection

Low voltage warning and shutdown circuitry to protect the batteries

Transformer type output to protect computers and other sensitive equipment from surges and spikes

Over voltage and over temperature warning and shutdown circuitry to protect the inverter

Thermostatically controlled fan

One AC receptacles for easy connection of up to four devices (Various Mil Connectors Available as options)

Isolated input for positive or negative ground operation

Diagnostic LEDs and Audible Alarms

Military Option
Most of the products manufactured by Analytic Systems can be adapted for military use (Commercial Off The Shelf).

We provide four different levels of ruggedization; most often, a product in military use will use the extra-wide temperature range components to allow operation to -55 degrees Celsius.

The printed circuit boards are also protected against condensation and are enhanced with vibration protection that meets or exceeds MIL-STD810F, Method 514-3 and Cat-1 Proc 1. C.O.T.S. products are designed to meet water tightness, and various levels of EMC radiated and conducted emissions MIL-STD 461E.

All C.O.T.S. products are manufactured in accordance with IPC-A-610.

Electrical [Input]
Nominal Vac (ip)	12	24	32
Actual (Vac)	10.5-16	20-30	30-40
Input Amps (Max)	48	25	17
Input Fuse (ATC)	30A x 2	30A	20A

Electrical [Output]
Output Nominal (op)	110	220
Output Volts (AC)	115 5 rms	220 10 rms
Output Amps	2.50 cont. / 3.33 peak	1.36 cont. / 1.82 peak
Output Frequency	60.00 0.01 Hz	50.00 0.01 Hz
Output Type	Pure Sine Wave
Output Distortion	< 5% at 300 Watts into 0.8 power factor load
Transient Response	< 1V for 50% Surge
Regulation (Line & Load)	< +/- 0.5%
Duty Cycle	Peak 20% for 10 min max Continuous 100% for 24 hours per day
Efficiency	> 80% @ Maximum Output
Ground Fault Current	Max 5 mA between Neutral and Ground
Safety	Designed to meet CSA 22.2.107.1 & UL458

Environmental Specification
Operating Temp. Range	-40 to +55C @ maximum output(-55C Available) Derate Linearly 2.5% perC from 50C to 85C
Humidity	0 - 95% Relative Humidity (non-condensing) with optional conformal coating
Audible Noise	dB @ 3 ft (34.5 dB when fan operating)
Typical Service Life	>10 years (87,600 hours)
Isolation	Input-Case & Input-Output 1500VDC Output-Case 500VDC
Vibration	Designed to meet the Loose Cargo MIL-SPEC Requirement

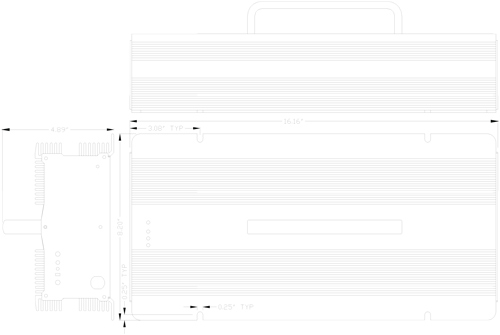

Mechanical Specification
Length	10.7 in/ 27.2 cm
Width	7.7 in/ 19.6 cm
Height	5.2 in/ 13.2 cm
Clearance	1 inch (2.5 cm) all around
Material	Marine Grade Aluminium rainproof
Finish	Black Anodize / Powder Epoxy Coat
Fastenings	All 18-8 Stainless Steel
Weight	12.0 lb / 5.5 kg
Connections	Standard Dual Decora Style AC Receptacle (Military Connectors available upon request)
Warranty	2 years
