VTC300 Series DC/DC Converter

BENEFITS

  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation

Download VTC300 Datasheet

Download VTC300 Manual

This all new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation.

Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage, over temperature and overload.

Safety features include reverse input protection, over-temperature shutdown, current limiting, short circuit shutdown, a dry contact alarm relay output and output overvoltage crowbar. Optional features include a remote panel monitoring with On-Off control.

We are confident that you will get many years of reliable service from this Voltage Converter.

Features

  • Adjustable output voltage
  • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
  • Extremely rugged and well suited for marine and other demanding environments
  • High tolerance for shock and vibration
  • Ultra-quiet low EMI operation
  • Current limiting protection
  • Reverse input protection
  • Output over-voltage crowbar
  • Dry contact output fail relay
  • Remote control option
  • Wide-Temperature operation Available
  • Parallel output diodes available
  • Conformal Coating and/or Harsh Environment Ruggedization Available
  • 3 year parts and labour warranty

    • Applications

  • Marine & other rugged environments
  • Mobile Offices (TV and Radio Vans)
  • Automotive / RV
  • Electric Utilities and Substations
  • Base Station Power(Radio & Telecommunications)
  • Industrial Controls(OEM Applications)
  • Field Work / Construction Sites
  • Solar/Alternative Power Systems
  • Emergency Backup Power (UPS)
    • Electrical [Input]
    Model Number VTC300-32-12 VTC300-32-24
    Input Volts(DC) 20-45 30-45
    Input Amps (Max) 20 22
    Input Fuse (AGC) 25A
    Noise on Input < 25mV
    Electrical [Output]
    Output Nominal (op) 12 24
    Output Volts (DC) 13.6 ± 0.05 27.2 ± 0.05
    Output Adjustment ± 0.05
    Output Current(Amps) 25 cont./ 35 peak 20 cont./ 25 peak
    Current Limit 37 Amps 27 Amps
    Output Crowbar 16.0 ± 0.5V 32.0 ± 1.0V
    Output Ripple & Noise < 25 mV
    Transient Response < 1V for 50% Surge
    Regulation
    (Line & Load)    		 < +/- 0.5%
    Duty Cycle Peak 20% for 10 min maximum
    Continuous 100% for 24 hours per day
    Efficiency > 90% @ Maximum Output
    Environmental Specification
    Operating Temp. Range -25° to +50°C @ maximum output
    Derate Linearly 2.5% per°C from 50°C
    (Optional -50°C extra wide temp. operation avail.)
    Humidity 0 - 95% Relative Humidity
    (non-condensing) with optional conformal coating
    Audible Noise NONE Ødb @ 3 ft
    Typical Service Life >10 years (87,600 hours)
    Isolation Any Input or Output to Case 500 VDC
    Input to Output – Common Negative

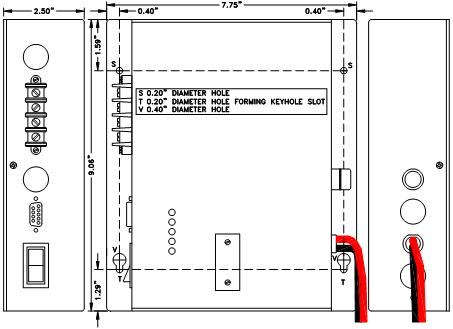

    Mechanical Specification
    Length 9.1 in/ 23.1 cm
    Width 7.8 in/ 19.8 cm
    Height 2.5 in/ 6.4 cm
    Material Marine Grade Aluminium
    Finish Black Anodize
    Fastenings All 18-8 Stainless Steel
    Weight 4.0 lb / 1.8 kg
    Connections #12 AWG Input Wires (Positive & Negative)
    Four contact output terminal
    Warranty 3 years
