VTC305 Series DC/DC Converter

BENEFITS

  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation

Download VTC305 Datasheet

Download VTC305 Manual

Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system.

Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, a dry contact alarm relay output and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include remote panel monitoring with On/Off control.

Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12V and 24 VDC power systems in marine, automotive or aeronautical environments and more.

Features

  • Vibration proof output voltage adjustment by 3 position DIP switch
  • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
  • Extremely rugged and well suited for marine and other demanding environments
  • High tolerance for shock and vibration
  • Ultra-quiet low EMI operation
  • Current limiting protection
  • Reverse input protection
  • Output over-voltage crowbar
  • Dry contact output fail relay
  • Remote control option
  • Wide-Temperature operation Available
  • Parallel output diodes available
  • Conformal Coating and/or Harsh Environment Ruggedization Available
  • 3 year parts and labour warranty

  • Applications

  • Marine & other rugged environments
  • Mobile Offices (TV and Radio Vans)
  • Automotive / RV
  • Electric Utilities and Substations
  • Base Station Power(Radio & Telecommunications)
  • Industrial Controls(OEM Applications)
  • Field Work / Construction Sites
  • Solar/Alternative Power Systems
  • Any 12 or 24V Equipment
    • Electrical [Input]
    Input Volts(DC) 10.5-18 10.5-28
    Input Amps (Max) 30
    Input Fuse (AGC) 20x 2 Amp
    Noise on Input < 25 mV
    Low Input
    Voltage Alarm    		 10.5 VDC
    Current Limit 30 Amps in
    Electrical [Output]
    Output Nominal (op) 12 24
    Output Volts (DC) Input - 1V or 13.5 to 17.0
    Whichever is greater    		 Input - 1V or 24.0 to 27.5
    Whichever is greater
    Output Adjustment * 27
    Output Crowbar Programmed Output Volts x 1.2
    Output Ripple & Noise < 25 mV
    Low Output
    Voltage Alarm    		 Programmed Output
    Voltage minus 2.5 VDC
    Transient Response < 1V for 50% Surge
    Regulation
    (Line & Load)    		 < +/- 0.5%
    Duty Cycle Continuous 100% for 24 hours per day
    Efficiency > 90% @ Maximum Output

    * The actual output current capability depends upon the input/output voltage ratio.
    To obtain the actual output current capability at any given input voltage,
    use the following formula:
    Output Amps = Input Volts/Output Volts x 27
    For example, at 11 VDC in and 13.6 VDC out, the output current = 11/13.6 x 27 = 22.8 amps

    Environmental Specification
    Operating Temp. Range -25° to +40°C @ maximum output
    Derate Linearly 2.5% per°C from 40°C
    (Optional -40°C extra wide temp. operation avail.)
    Humidity 0 - 95% Relative Humidity
    (non-condensing) with optional conformal coating
    Audible Noise NONE Ødb @ 3 ft
    Typical Service Life >10 years (87,600 hours)
    Isolation Any Input or Output to Case 500 VDC
    Input to Output – Common Negative

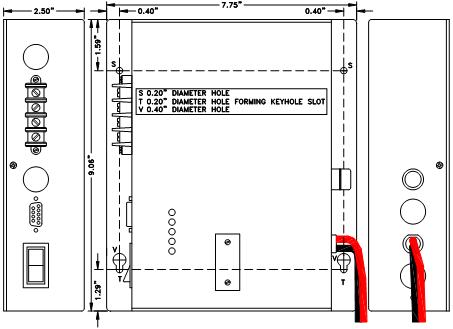

    Mechanical Specification
    Length 9.1 in/ 23.1 cm
    Width 7.8 in/ 19.8 cm
    Height 2.5 in/ 6.4 cm
    Material Marine Grade Aluminium
    Finish Black Anodize / Powder Epoxy Coat
    Fastenings All 18-8 Stainless Steel
    Weight 4.0 lb / 1.8 kg
    Connections Four contact output terminals
    Warranty 3 years
