This model is designed to take a range of low voltage DC (even as low as 5V) and step it up to 13.6 out at up to 10 amps continuous output current.
It allows 12VDC rated equipment to be operated from a 5-8 VDC source, and prevents low voltage dropouts even during equipment starting.
This model is fully isolated. This means that the input negative (ground) connection and the output negative (ground) connection are physically separate.
It is specifically designed for supplying electronics and other critical equipment applications that require 100% uptime and a clean power source to operate.
We are confident that you will get many years of reliable service from this Voltage Converter / Power Supply.
Features
Applications
| Model | VTC125-6-12 |
|---|---|
| Input Volts(DC) | 5-8 |
| Input Amps(Max) | 35 max. |
| Input Fuse (AGC) | 40 |
| Output Volts (DC) (Precision Regulated) |
13.6V(12.0 Available) |
|---|---|
| Output Amps | 8.0 Cont. / 10.0 Peak |
| Output Ripple & Noise | < 25 mV |
| Output Crowbar | 16.0 +/- 0.5 VDC |
| Transient Response | < 1V for 50% Surge (Output Amps/2) |
| Duty Cycle | Peak 20% for 5 min maximum Continuous 100% for 24 hours per day |
| Efficiency | > 85% @ Maximum Output |
| Operating Temp. Range | -25° to +40°C @ maximum output Derate Linearly 2.5% per°C from 40°C (Optional -40°C extra wide temp. operation avail.) |
|---|---|
| Humidity | 0 - 95% Relative Humidity (non-condensing) with optional conformal coating |
| Audible Noise | NONE Ødb @ 3 ft |
| Typical Service Life | >10 years (87,600 hours) |
| Isolation | 500VDC Input to Output, Input or Output to Case; Fully Isolated |

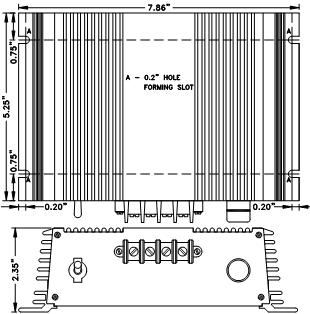

| Length | 7.9 in/ 20.1 cm |
|---|---|
| Width | 6.0 in/ 15.2 cm |
| Height | 2.4 in/ 6.1 cm |
| Material | Marine Grade Aluminium |
| Finish | Black Anodize / Powder Epoxy Coat |
| Fastenings | All 18-8 Stainless Steel |
| Weight | 2.5 lb / 1.1 kg |
| Connections | Four contact output terminals |
| Warranty | 3 years |
