VTC610 DC/DC Converter

BENEFITS

  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation

Download VTC610 Datasheet

Download VTC610 Manual

The model VTC610 Voltage Converter supplies 12V, 24V or 48 VDC from a 110V or 250VDC power source. Other input/output voltages are also available by special order.

The all-new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and short circuit shutdown with automatic recovery.

The output voltage is easily adjusted 1.0 volts above or below the standard output voltage to accommodate special requirements.

Optional features include a Remote Control, a Digital Volt Ammeter, Battery Charging and/or a 19” Rack Mount version.

Features

  • Fully Isolated Design
  • Adjustable output voltage
  • Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
  • Over-temperature shutdown
  • Short circuit protection
  • Output overvoltage crowbar
  • Cycle by cycle current limiting
  • Reverse input protection
  • Transient Voltage Suppression
  • Ultra-quiet low EMI operation
  • Dry contact output fail relay
  • Custom input voltages from 105 to 360 VDC
  • Custom output voltages from 12 to 55 VDC
  • Remote control option
  • Digital Volt/Ammeter option
  • 19” Rackmount Option
  • Wide Temperature operation Available
  • Conformal Coating and/or Harsh Environment Ruggedization Available

    • Applications

  • Marine & other rugged environments
  • Electric Utilities and Substations
  • Manufacturing Plants
  • Steel Mills
  • Military Applications (COTS)
  • Industrial Controls
  • OEM Applications
  • Solar / Alternative Power Systems
  • Fuel Cells
  • Electric Vehicles
    • Electrical [Input]
    Nominal Vdc (ip) 110 250
    Actual (Vdc) 100-140 230-280
    Input Amps (Max) 8.0 3.5
    Input Fuse (MDA) 10 4
    Noise on Input < 50mV
    Electrical [Output]
    Output Nominal (op) 12 24 48
    Output Volts (DC) 13.6 ± 0.05 27.2 ± 0.05 54.4 ± 0.05
    Output Amps 40cont./45peak 20cont./25peak 10cont./12.5peak
    Output Adjustment ± 1.0V
    Output Crowbar 16.0 ± 0.5V 32.0 ± 1.0V 63.9 ± 2.0V
    Output Ripple & Noise < 50 mV
    Transient Response < 2V for 50% Surge
    Regulation
    (Line & Load)    		 < +/- 0.5%
    Duty Cycle Peak 20% for 10 min max
    Continuous 100% for 24 hours per day
    Efficiency > 85% @ Maximum Output
    Environmental Specification
    Operating Temp. Range -25° to +40°C @ maximum output
    Derate Linearly 2.5% per°C from 40°C
    (Optional -40°C extra wide temp. operation avail.)
    Humidity 0 - 95% Relative Humidity
    (non-condensing) with optional conformal coating
    Audible Noise NONE - 0db @ 3 ft
    Typical Service Life >10 years (87,600 hours)
    Isolation Input-Case & input-output 1500VDC
    Output - Case 500VDC(1500VDC @ 48V O/P)

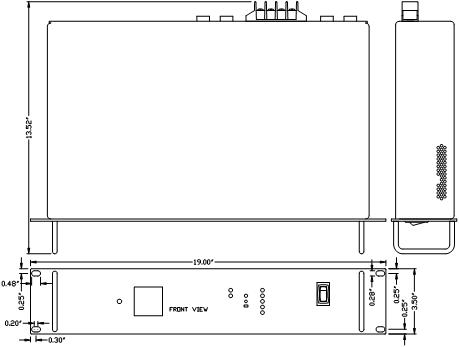

    Mechanical Specification
    Length 14.5 in/ 36.8 cm
    Width 10.2 in/ 25.9 cm
    Height 3.0 in/ 7.6 cm
    Clearance 1 inch (2.5 cm) all around
    Material Marine Grade Aluminium
    Finish Black Anodize / Powder Epoxy Coat
    Fastenings All 18-8 Stainless Steel
    Weight 7.5 lb / 3.4 kg
    Connections Four contact output terminals
    Warranty 3 years
    Safety UL458 & CSA22.2.107.1 Pending
