VTC1015R Series DC/DC Converter

BENEFITS

  • Ultra-Quiet
  • Power sensitive electronics without interference
  • Rugged & Reliable
  • Ensure years of safe and trouble free operation

Download VTC1015R Datasheet

Download VTC1015R Manual

The model VTC1015R Rackmount Voltage Converter supplies either 12V, 24V, or 48 VDC from a 24V or 48VDC power source.

All new Current Mode switching design offers increased power and reliability in a compact package. Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting, reverse battery hookup protection and output short circuit shutdown with automatic recovery. The output voltage is easily adjusted 1.0 volts above or below the standard output voltage. Devices connected to the converter are protected by an output overvoltage crowbar circuit.

All rackmount units come standard with High quality digital output meters to allow monitoring of output current and output voltage. An optional Battery Back-up is also available.

Features

  • Fully Isolated Design
  • Transient Voltage Suppressor
  • Adjustable output voltage
  • Audible & visual indicators for constant current, low input voltage, low output voltage & over-temperature
  • Over-temperature shutdown
  • Short circuit protection
  • Output overvoltage crowbar
  • Cycle by cycle current limiting
  • Reverse input protection
  • Ultra-quiet low EMI operation
  • Dry contact output fail relay
  • Thermostatically controlled fan
  • Standard Digital Volt/Ammeter
  • Custom input / output voltages from 12 to 55 VDC
  • Battery Back-up option
  • Wide-Temperature operation Available
  • Conformal Coating and/or Harsh Environment Ruggedization Available
  • 3 year parts and labour warranty

    • Applications

  • Telecom Power Plants
  • Electric Utilities and Substations
  • Marine & other Rugged Environments
  • Base Station Power(Radio & Telecommunications)
  • Industrial Controls (OEM Applications)
  • Solar / Alternative Power Systems
  • Emergency Power Backup (UPS)
    • Electrical [Input]
    Nominal Vdc (ip) 24 48 72
    Actual (Vdc) 20-35 40-60 65-90
    Input Amps (Max) 72.6 36.3 23
    Input Fuse (ATC) 3x 25 2x 20 1x 30
    Noise on Input < 50mV
    Electrical [Output]
    Output Nominal (op) 12 24 48
    Output Volts (DC) 13.6 ± 0.05 27.2 ± 0.05 54.4 ± 0.05
    Output Amps 60cont./70peak 40cont./45peak 20cont./22.5peak
    Output Adjustment ± 1.0V
    Output Crowbar 16.0 ± 0.5V 32.0 ± 1.0V 63.9 ± 2.0V
    Switching Frequency 60 ± 2 KHz
    Idle Power < 10 Watts
    Output Ripple & Noise < 50 mV
    Transient Response < 2V for 50% Surge
    Regulation
    (Line & Load)    		 < +/- 0.5%
    Duty Cycle Peak 20% for 10 min max
    Continuous 100% for 24 hours per day
    Efficiency > 82.5% @ Maximum Output
    Environmental Specification
    Operating Temp. Range -25° to +40°C @ maximum output
    Derate Linearly 2.5% per°C from 40°C
    (Optional -40°C extra wide temp. operation avail.)
    Humidity 0 - 95% Relative Humidity
    (non-condensing) with optional conformal coating
    Audible Noise NONE Ødb @ 3 ft (34.5 dB when fan operating)
    Typical Service Life >10 years (87,600 hours)
    Isolation Input-Case & Input-Output 1500VDC (500V @ 24V I/P)
    Output-Case 500VDC (1500VDC @ 48V O/P)

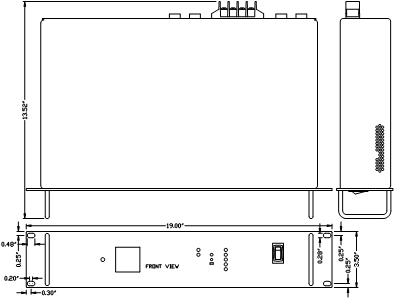

    Mechanical Specification
    Length 13.5 in/ 34.3 cm
    Width 19.0 in/ 48.3 cm
    Height 2u (3.5 in)
    Material Marine Grade Aluminium
    Finish Black Anodize / Powder Epoxy Coat
    Fastenings All 18-8 Stainless Steel
    Weight 12.0 lb / 5.5 kg
    Connections Four contact output terminals
    Warranty 3 years
    Safety Designed to meet CSA 22.2.107.1 & UL458
